NeXpose Vulnerability Scanning in Metasploit

a11y.text NeXpose Vulnerability Scanning in Metasploit

The Metasploit/NeXpose integration is not limited to simply importing scan results files. You can run NeXpose scans directly from msfconsole by first making use of the nexpose plugin.

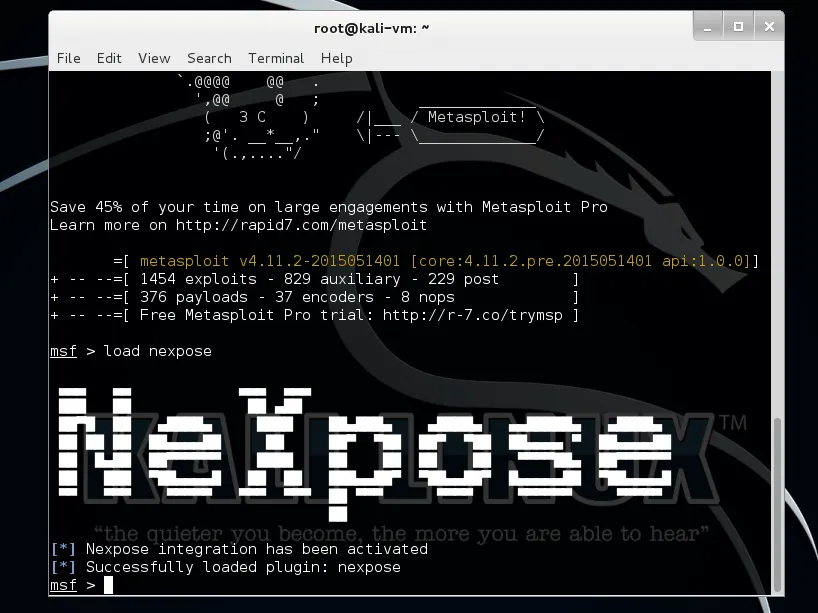

msf > load nexpose

 ▄▄▄   ▄▄            ▄▄▄  ▄▄▄
 ███   ██             ██ ▄██
 ██▀█  ██   ▄████▄     ████    ██▄███▄    ▄████▄   ▄▄█████▄   ▄████▄
 ██ ██ ██  ██▄▄▄▄██     ██     ██▀  ▀██  ██▀  ▀██  ██▄▄▄▄ ▀  ██▄▄▄▄██
 ██  █▄██  ██▀▀▀▀▀▀    ████    ██    ██  ██    ██   ▀▀▀▀██▄  ██▀▀▀▀▀▀
 ██   ███  ▀██▄▄▄▄█   ██  ██   ███▄▄██▀  ▀██▄▄██▀  █▄▄▄▄▄██  ▀██▄▄▄▄█
 ▀▀   ▀▀▀    ▀▀▀▀▀   ▀▀▀  ▀▀▀  ██ ▀▀▀      ▀▀▀▀     ▀▀▀▀▀▀     ▀▀▀▀▀
                               ██

[*] Nexpose integration has been activated
[*] Successfully loaded plugin: nexpose



msf > help

Nexpose Commands
================

    Command                   Description
    -------                   -----------
    nexpose_activity          Display any active scan jobs on the Nexpose instance
    nexpose_command           Execute a console command on the Nexpose instance
    nexpose_connect           Connect to a running Nexpose instance ( user:pass@host[:port] )
    nexpose_disconnect        Disconnect from an active Nexpose instance
    nexpose_discover          Launch a scan but only perform host and minimal service discovery
    nexpose_dos               Launch a scan that includes checks that can crash services and devices (caution)
    nexpose_exhaustive        Launch a scan covering all TCP ports and all authorized safe checks
    nexpose_report_templates  List all available report templates
    nexpose_save              Save credentials to a Nexpose instance
    nexpose_scan              Launch a Nexpose scan against a specific IP range and import the results
    nexpose_site_devices      List all discovered devices within a site
    nexpose_site_import       Import data from the specified site ID
    nexpose_sites             List all defined sites
    nexpose_sysinfo           Display detailed system information about the Nexpose instance

...snip...

Before running a scan against a target, we first need to connect to our server running NeXpose by using the nexpose_connect command along with the credentials for the NeXpose instance. Note that you will have to append ‘ok’ to the end of the connect string to acknowledge that the SSL connections are not verified.

msf > nexpose_connect -h
[*] Usage:
[*]        nexpose_connect username:password@host[:port] >ssl-confirm>
[*]         -OR-
[*]        nexpose_connect username password host port >ssl-confirm>

msf > nexpose_connect loneferret:something@127.0.0.1:3780 ok
[*] Connecting to Nexpose instance at 127.0.0.1:3780 with username loneferret...

Now that we are connected to our server, we can run a vulnerability scan right from within Metasploit.

msf > nexpose_scan -h
Usage: nexpose_scan [options] >Target IP Ranges>

OPTIONS:

    -E   Exclude hosts in the specified range from the scan
    -I   Only scan systems with an address within the specified range
    -P        Leave the scan data on the server when it completes (this counts against the maximum licensed IPs)
    -c   Specify credentials to use against these targets (format is type:user:pass
    -d        Scan hosts based on the contents of the existing database
    -h        This help menu
    -n   The maximum number of IPs to scan at a time (default is 32)
    -s   The directory to store the raw XML files from the Nexpose instance (optional)
    -t   The scan template to use (default:pentest-audit options:full-audit,exhaustive-audit,discovery,aggressive-discovery,dos-audit)
    -v        Display diagnostic information about the scanning process

We’ll provide our scanner with the credentials for the ‘ssh’ services, and use the ‘full-audit’ scan template. Our scan results should be very similar to one we previously imported.

msf > msf > nexpose_scan  -c ssh:msfadmin:msfadmin -t full-audit 172.16.194.172
[*] Scanning 1 addresses with template aggressive-discovery in sets of 32
[*] Completed the scan of 1 addresses
msf >

msf > hosts

Hosts
=====

address         mac  name            os_name       os_flavor  os_sp  purpose  info  comments
-------         ---  ----            -------       ---------  -----  -------  ----  --------
172.16.194.172       METASPLOITABLE  Ubuntu Linux                    device

Again, we run services and vulns and we can see that the results are of the same quality as those we imported via the XML file.

msf > services

Services
========

host            port   proto  name                 state  info
----            ----   -----  ----                 -----  ----
172.16.194.172  21     tcp    ftp                  open   vsFTPd 2.3.4
172.16.194.172  22     tcp    ssh                  open   OpenSSH 4.7p1
172.16.194.172  23     tcp    telnet               open
172.16.194.172  25     tcp    smtp                 open   Postfix
172.16.194.172  53     tcp    dns-tcp              open   BIND 9.4.2
172.16.194.172  53     udp    dns                  open   BIND 9.4.2
172.16.194.172  80     tcp    http                 open   Apache 2.2.8
172.16.194.172  111    udp    portmapper           open
172.16.194.172  111    tcp    portmapper           open
172.16.194.172  137    udp    cifs name service    open
172.16.194.172  139    tcp    cifs                 open   Samba 3.0.20-Debian
172.16.194.172  445    tcp    cifs                 open   Samba 3.0.20-Debian
172.16.194.172  512    tcp    remote execution     open
172.16.194.172  513    tcp    remote login         open
172.16.194.172  514    tcp    remote shell         open
172.16.194.172  1524   tcp    ingreslock (ingres)  open
172.16.194.172  2049   tcp    nfs                  open
172.16.194.172  2049   udp    nfs                  open
172.16.194.172  3306   tcp    mysql                open   MySQL 5.0.51a
172.16.194.172  5432   tcp    postgres             open
172.16.194.172  5900   tcp    vnc                  open
172.16.194.172  6000   tcp    xwindows             open
172.16.194.172  8180   tcp    http                 open   Tomcat
172.16.194.172  41407  udp    status               open
172.16.194.172  44841  tcp    mountd               open
172.16.194.172  47207  tcp    nfs lockd            open
172.16.194.172  48972  udp    nfs lockd            open
172.16.194.172  51255  tcp    status               open
172.16.194.172  58769  udp    mountd               open


msf > vulns
[*] Time: 2012-06-20 16:34:21 UTC Vuln: host=172.16.194.172 name=NEXPOSE-cifs-nt-0001 refs=CVE-1999-0519,URL-http://www.hsc.fr/ressources/presentations/null_sessions/
[*] Time: 2012-06-20 16:34:21 UTC Vuln: host=172.16.194.172 name=NEXPOSE-generic-ip-source-routing-enabled refs=BID-646,CVE-1999-0510,CVE-1999-0909,MSB-MS99-038,URL-http://packetstormsecurity.nl/advisories/nai/nai.99-09-20.windows_ip_source_routing
[*] Time: 2012-06-20 16:34:21 UTC Vuln: host=172.16.194.172 name=NEXPOSE-unix-hosts-equiv-allows-access refs=
[*] Time: 2012-06-20 16:34:21 UTC Vuln: host=172.16.194.172 name=NEXPOSE-cifs-share-world-writeable refs=CVE-1999-0520

...snip...

[*] Time: 2012-06-20 16:34:22 UTC Vuln: host=172.16.194.172 name=NEXPOSE-vnc-password-password refs=
[*] Time: 2012-06-20 16:34:22 UTC Vuln: host=172.16.194.172 name=NEXPOSE-apache-tomcat-default-password refs=BID-38084,CVE-2009-3843,CVE-2010-0557
[*] Time: 2012-06-20 16:34:22 UTC Vuln: host=172.16.194.172 name=NEXPOSE-apache-tomcat-example-leaks refs=
[*] Time: 2012-06-20 16:34:22 UTC Vuln: host=172.16.194.172 name=NEXPOSE-apache-tomcat-default-install-page refs=
[*] Time: 2012-06-20 16:34:22 UTC Vuln: host=172.16.194.172 name=NEXPOSE-nfs-mountd-0002 refs=

Expanding on our NeXpose Scanning Methods

a11y.text Expanding on our NeXpose Scanning Methods

Other types of scans can be conducted against a target, or targets, by using the nexpose_discover, nexpose_dos and nexpose_exhaustive commands. The first performs a minimal service discovery scan, as the other will add denial of service checking. Caution should be used when running the nexpose_dos, as it may very well crash your target. The nexpose_exhaustive scan will cover all TCP ports and all authorized safe checks.

msf > nexpose_discover -h
Usage: nexpose_scan [options] >Target IP Ranges>

OPTIONS:

    -E   Exclude hosts in the specified range from the scan
    -I   Only scan systems with an address within the specified range
    -P        Leave the scan data on the server when it completes (this counts against the maximum licensed IPs)
    -c   Specify credentials to use against these targets (format is type:user:pass
    -d        Scan hosts based on the contents of the existing database
    -h        This help menu
    -n   The maximum number of IPs to scan at a time (default is 32)
    -s   The directory to store the raw XML files from the Nexpose instance (optional)
    -t   The scan template to use (default:pentest-audit options:full-audit,exhaustive-audit,discovery,aggressive-discovery,dos-audit)
    -v        Display diagnostic information about the scanning process


msf > nexpose_dos -h
Usage: nexpose_scan [options] >Target IP Ranges>

OPTIONS:

    -E   Exclude hosts in the specified range from the scan
    -I   Only scan systems with an address within the specified range
    -P        Leave the scan data on the server when it completes (this counts against the maximum licensed IPs)
    -c   Specify credentials to use against these targets (format is type:user:pass
    -d        Scan hosts based on the contents of the existing database
    -h        This help menu
    -n   The maximum number of IPs to scan at a time (default is 32)
    -s   The directory to store the raw XML files from the Nexpose instance (optional)
    -t   The scan template to use (default:pentest-audit options:full-audit,exhaustive-audit,discovery,aggressive-discovery,dos-audit)
    -v        Display diagnostic information about the scanning process


msf > nexpose_exhaustive -h
Usage: nexpose_scan [options] >Target IP Ranges>

OPTIONS:

    -E   Exclude hosts in the specified range from the scan
    -I   Only scan systems with an address within the specified range
    -P        Leave the scan data on the server when it completes (this counts against the maximum licensed IPs)
    -c   Specify credentials to use against these targets (format is type:user:pass
    -d        Scan hosts based on the contents of the existing database
    -h        This help menu
    -n   The maximum number of IPs to scan at a time (default is 32)
    -s   The directory to store the raw XML files from the Nexpose instance (optional)
    -t   The scan template to use (default:pentest-audit options:full-audit,exhaustive-audit,discovery,aggressive-discovery,dos-audit)
    -v        Display diagnostic information about the scanning process

NeXpose and Metasploit integration has improved greatly over time. Running scans directly from the console using all of NeXpose’s features is a great addition to the Framework. Also we now have the possibility to correlate our findings against Metasploit’s different modules. This feature is offered using the Community Edition which is discussed in a later module.
